Introduction

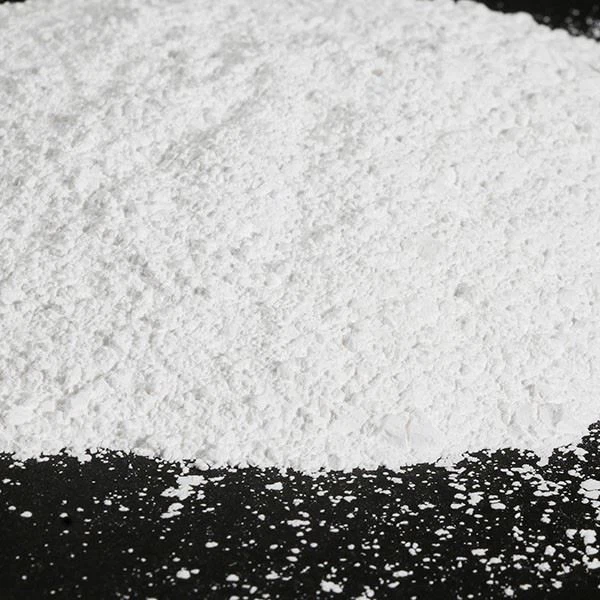

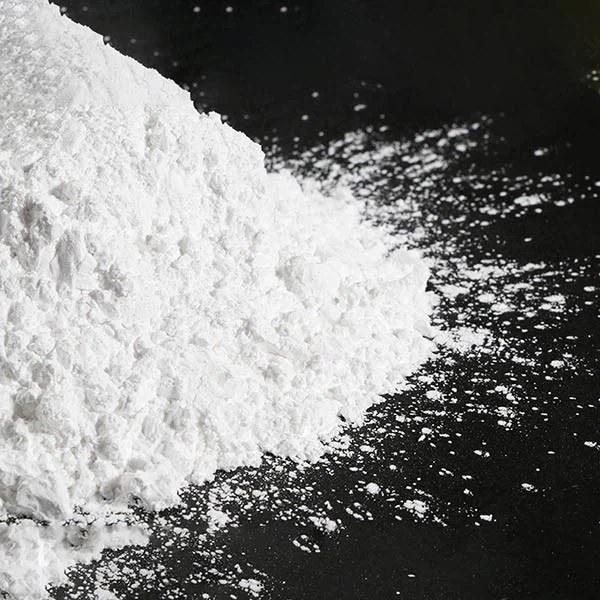

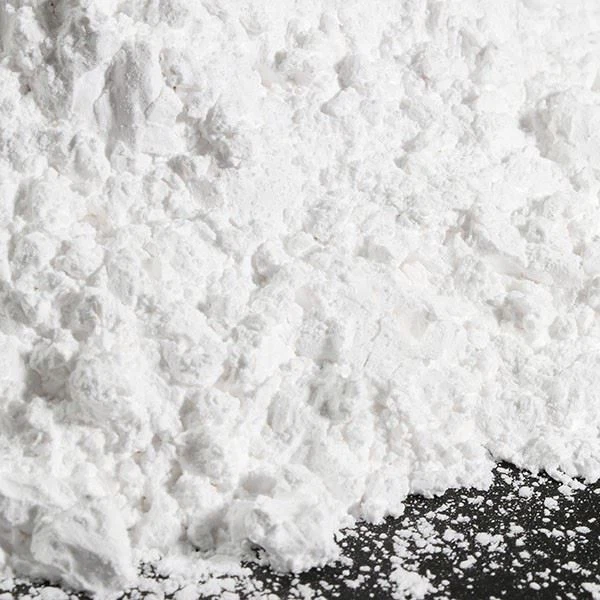

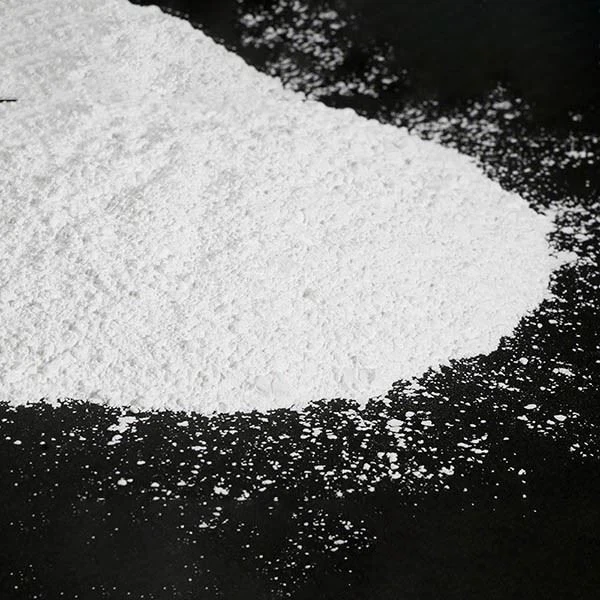

Zeolite H-ZSM-5 catalyst is the proton-type (H-type) molecular sieve of ZSM-5, it also has a MFI structure. The AlO₄⁻ units in the H-ZSM-5 framework are balanced by H⁺ charges, thereby forming Brønsted acid centers (Si–OH–Al) within the lattice, which is the source of its catalytic activity. Almost all acid-catalyzed reactions depend on H-ZSM-5 zeolite.
Products Description
Structural Advantage
H-ZSM-5 has a mesoporous MFI structure, thus exhibiting extremely high shape selectivity; its interconnected three-dimensional channels enables more balanced diffusion of the reactants.
Acid Efficiency
The acid source of H-ZSM-5 is mainly Brønsted acid, which has high catalytic efficiency; and the second is Lewis acid, which promotes auxiliary reactions.
Hydrothermal Stability
H-ZSM-5 has excellent hydrothermal stability, strong resistance to carbon buildup, which are highly valued in industrial practices.
Hot Tags: zeolite catalyst h-zsm-5, China zeolite catalyst h-zsm-5 manufacturers, suppliers
Technical Specification
|
Type |
H-ZSM-5 |
|
Apprearance |
White powder |
|
Crystal Structure |
MFI |
|
Crystal Size(μm) |
2~6 |
|
BET Surface Area(m2/g) |
>380 |
|
SiO2/Al2O3(mol/mol) |
20~∞ |
|
Crystallinity(%) |
>95 |
Application
- Petrochemical FCC
- Methanol Conversion Technologies
